Set Up Google Wallet

This page explains how to configure Google Wallet so customers can add their Customer barcode/QR code (based on their store customer ID) to their wallet.

By enabling Google Wallet, customers can display their Customer barcode/QR code directly in the wallet app. This removes the need to log in to their account page just to show a code, providing a smoother checkout experience.

Requirements​

Themes where Google Wallet can be added:

  • Customer accounts (Recommended)
  • Legacy customer accounts with a theme that supports OS 2.0

Themes where Google Wallet cannot be added:

  • Legacy customer accounts with a theme that does not support OS 2.0

Configure Google Wallet — Common Settings​

In the Barcodeator app, open the Google Wallet tab.

Set up the following fields:

  • Card Title
  • Card Name
  • Barcode Type
  • Logo

Refer to the preview on the right side of the page to see how each field is reflected in Google Wallet.

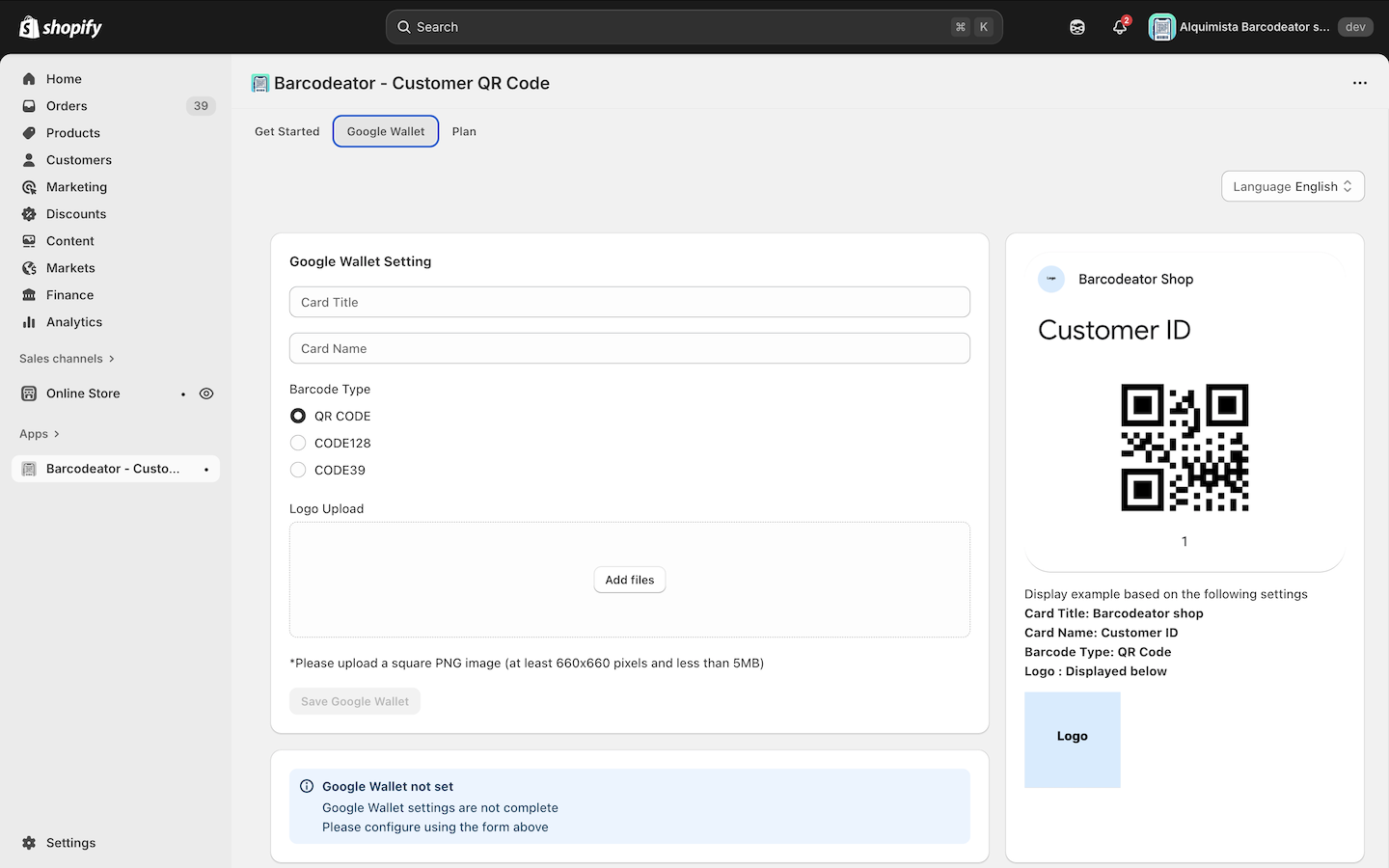

Google Wallet Settings Screen

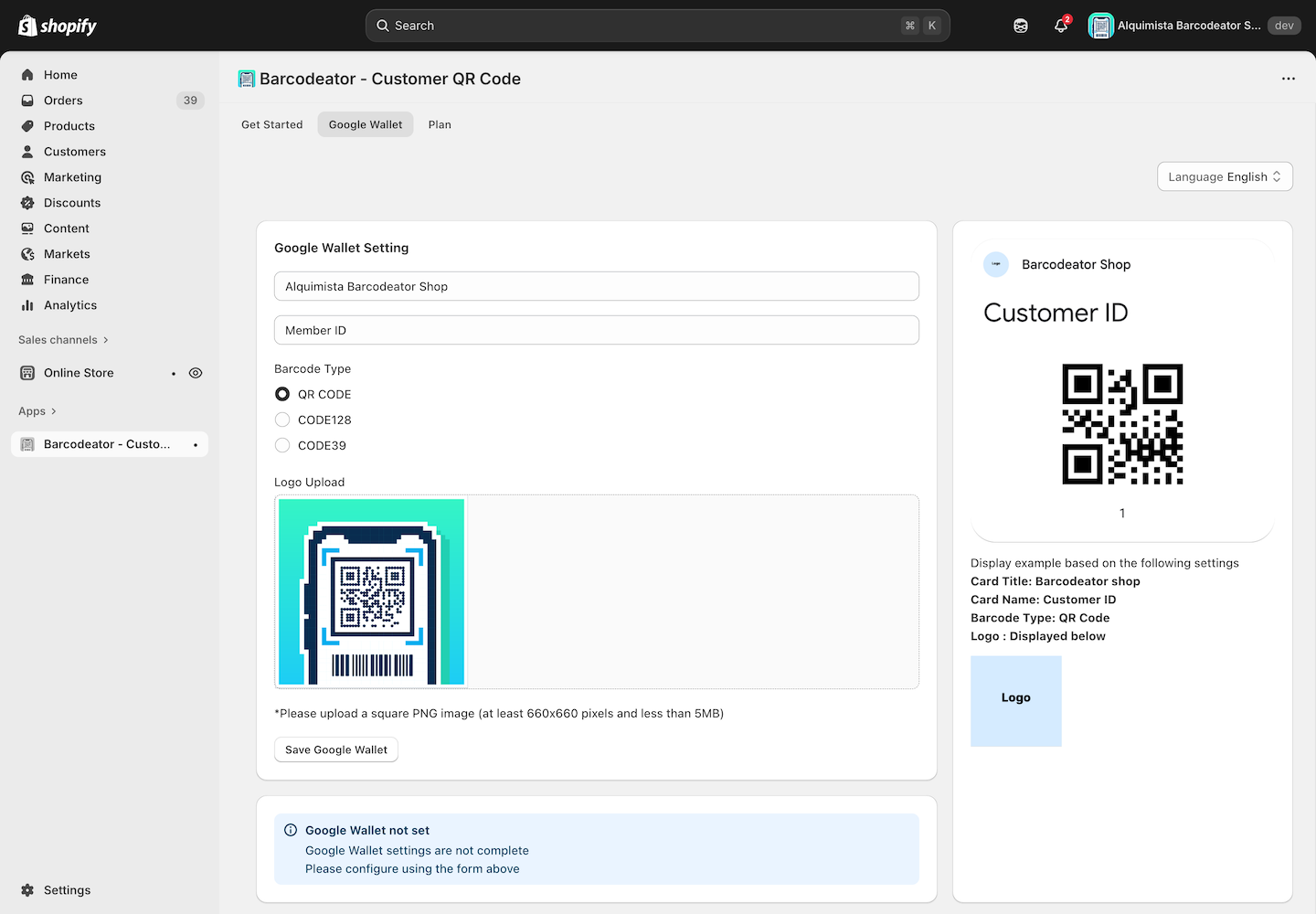

Filling Out Google Wallet Settings

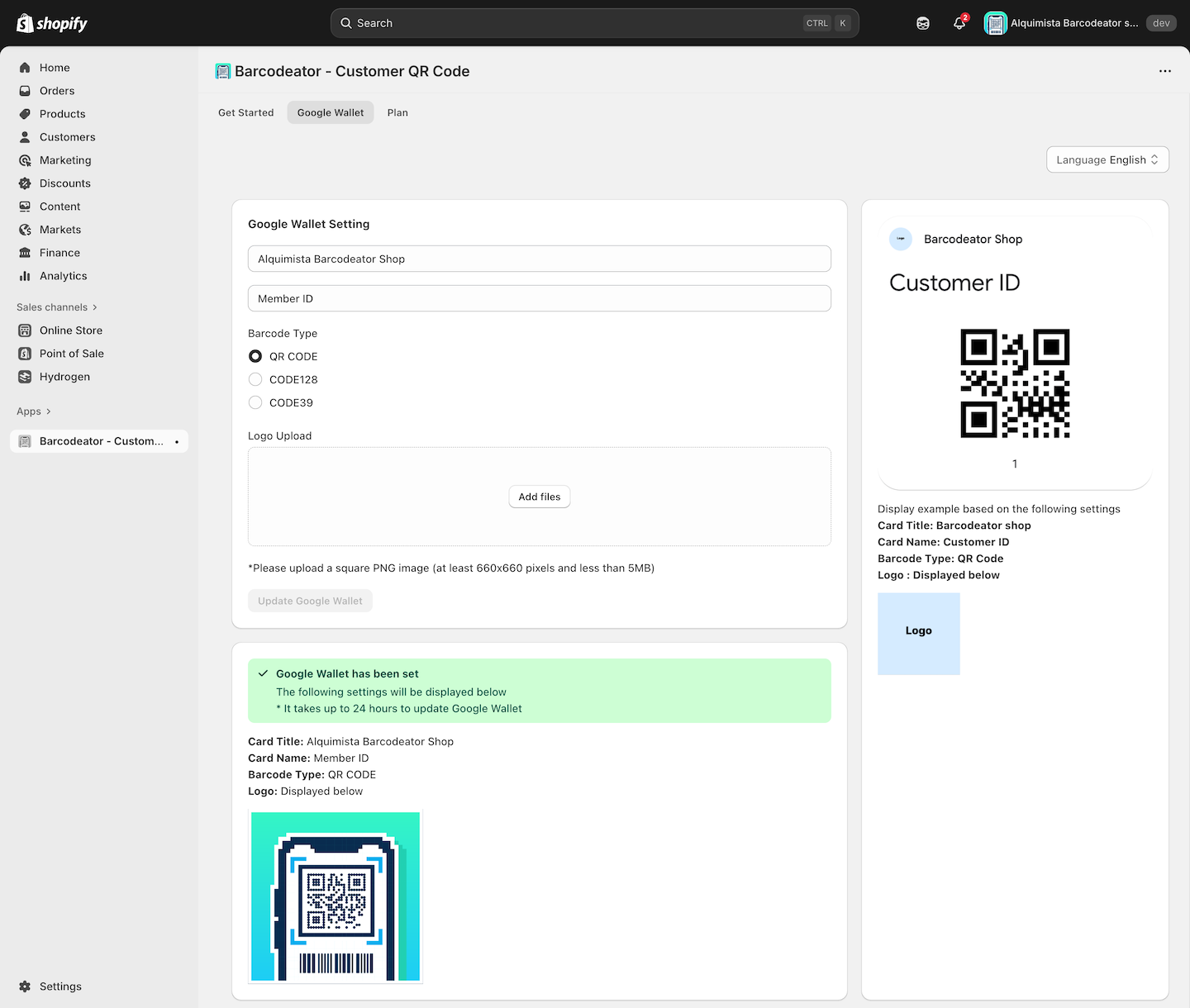

Updated Google Wallet Settings

⚠️ Updates to Google Wallet data can take time to reflect (up to 24 hours). To avoid issues with customers, we recommend not changing these settings once they are configured.

Configure Google Wallet — Customer accounts (Recommended)​

From the Barcodeator app home screen, click Edit profile page, or in the Shopify Admin go to Settings > Checkout > Customize.

On the left side, click the Apps icon.
From the list of app blocks, click the + button next to Add to Google Wallet, and choose Profile as the placement.

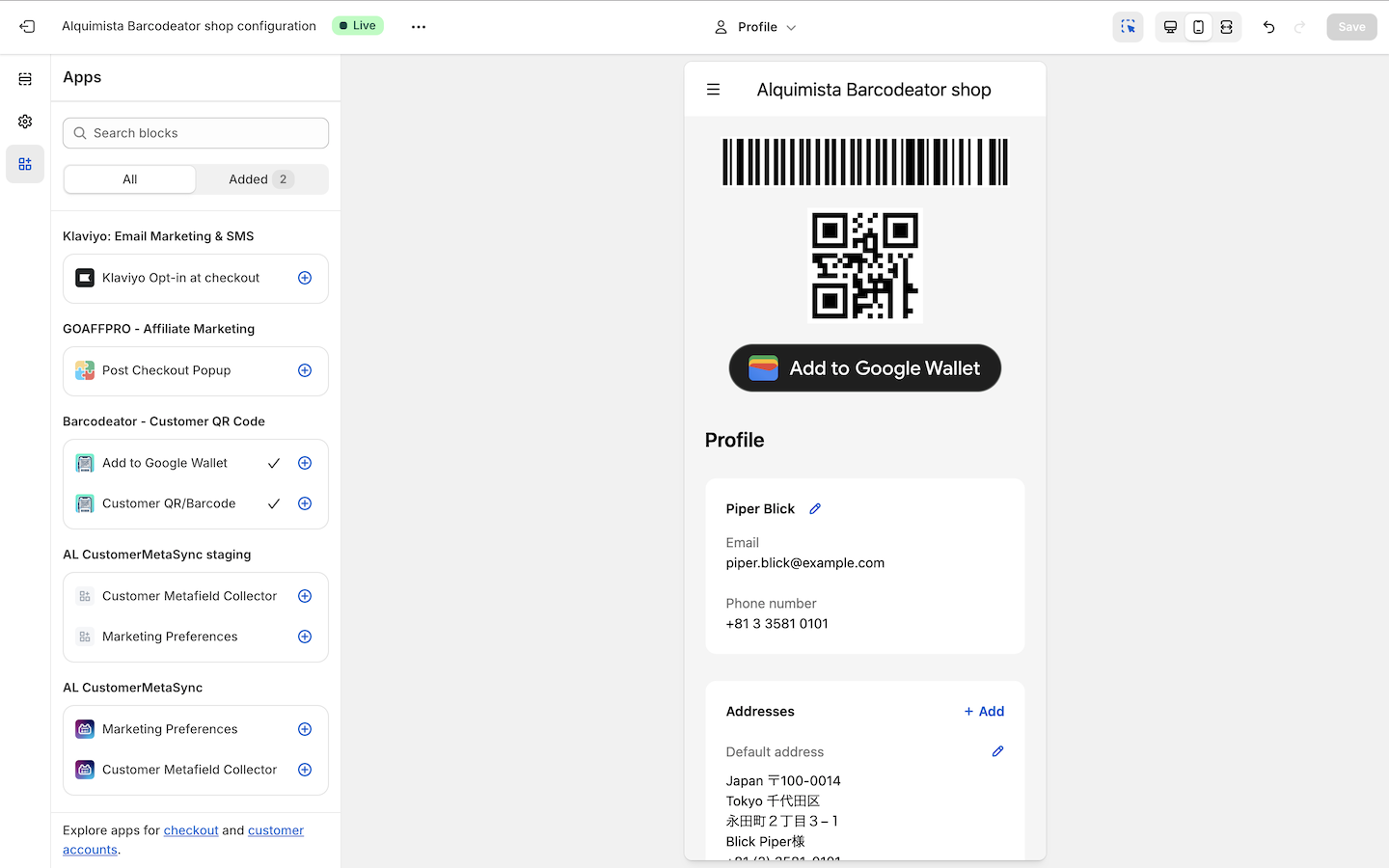

Add App Block

⚠️ In the customization screen, dummy data is displayed, and you can’t preview it by logging in as an existing customer. To verify Google Wallet functionality, log in from your online store instead.

Configure Google Wallet — Legacy accounts with OS 2.0 Supported Theme​

From the Barcodeator app home screen, click Edit profile page, or in the Shopify Admin go to
Sales channels > Online Store > Themes > Customize > Legacy customer accounts > Customer accounts.

Note: If prompted, log in with an existing account.

From the Template area on the left, click Add section > Apps > Add to Google Wallet to add Google Wallet.

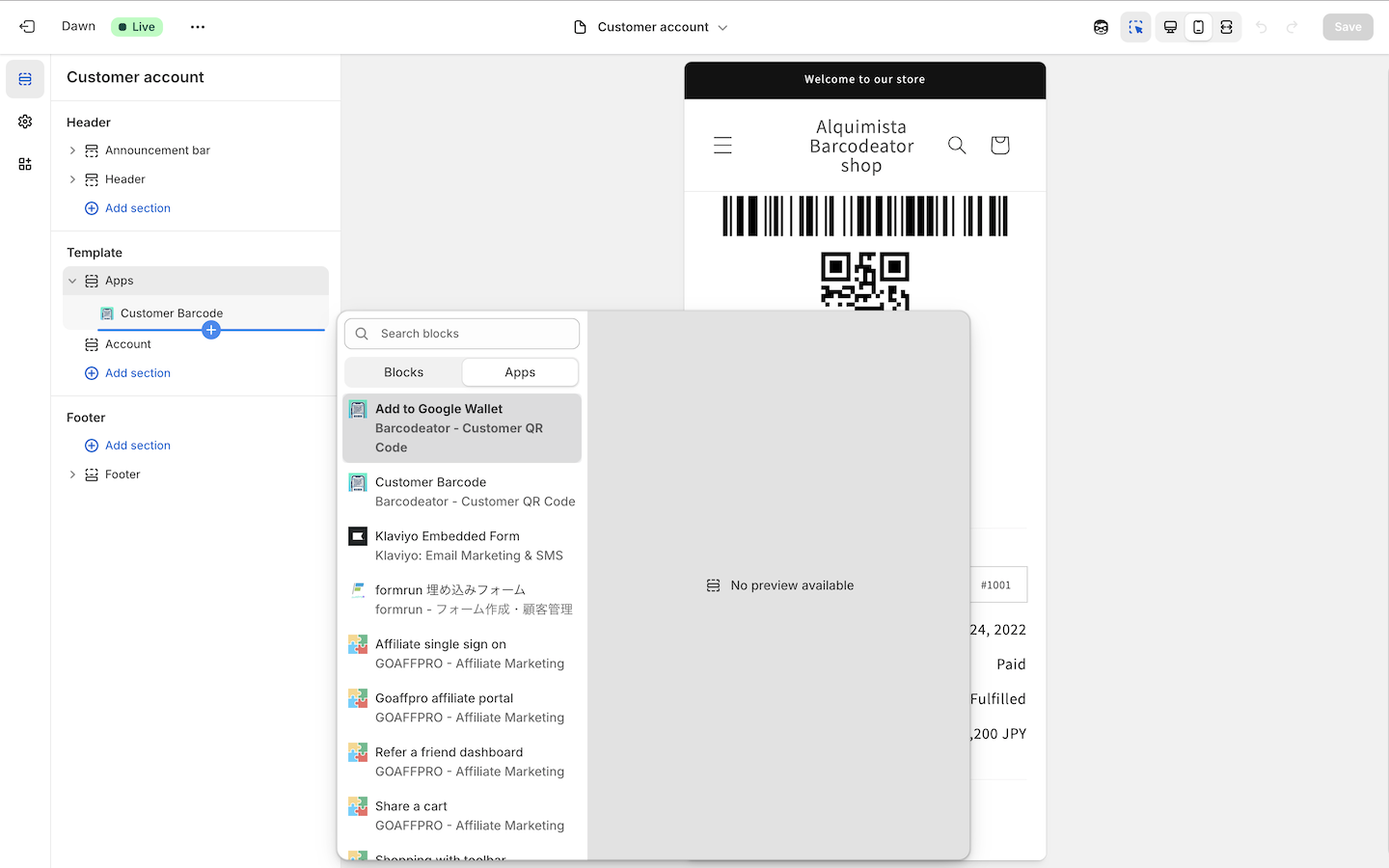

Add App Section

After it’s added, the Add to Google Wallet icon will appear as shown below:

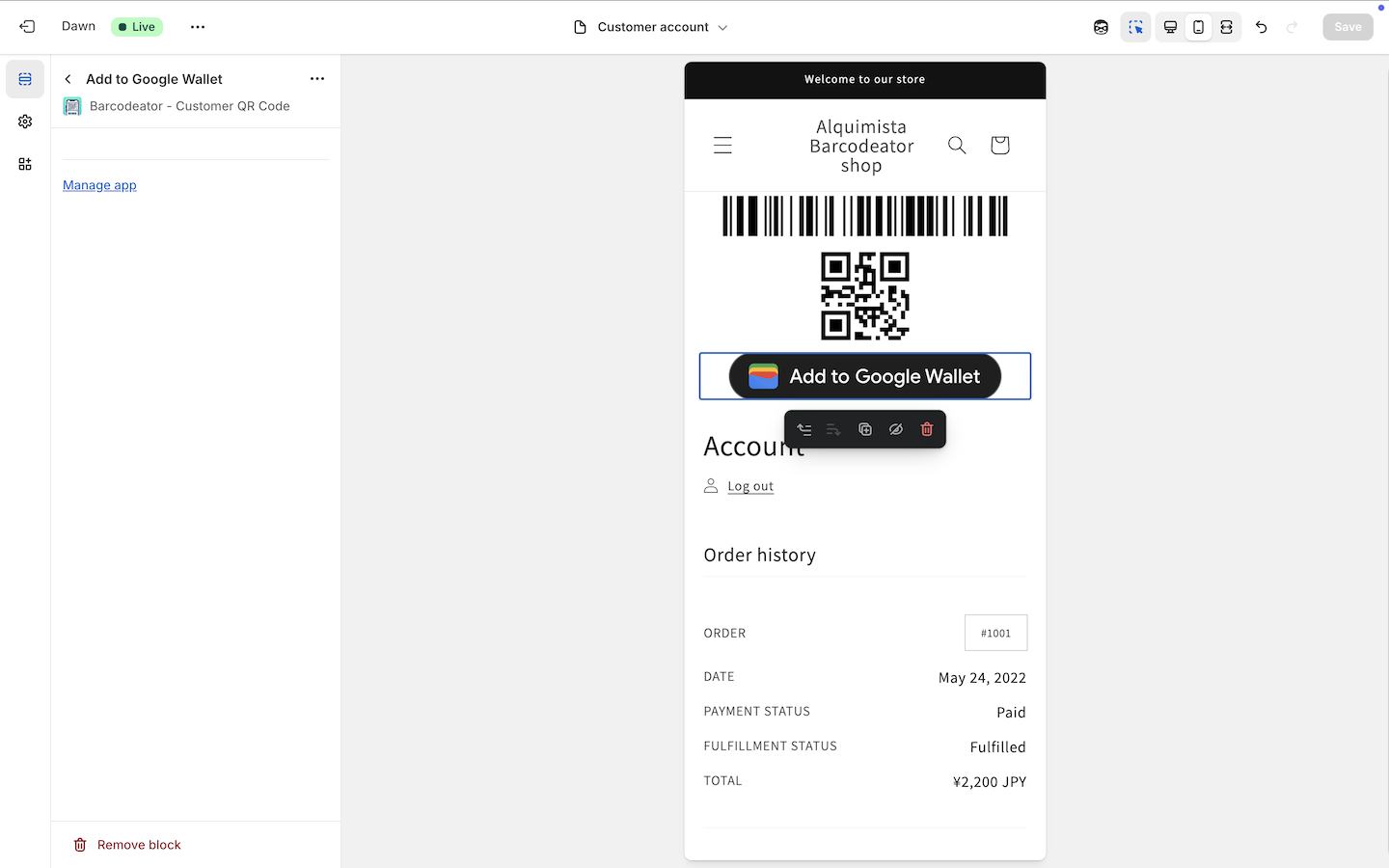

App Block Added

If Google Wallet has not been configured, you’ll see the following error when adding the app block.
If this error appears, review the steps in Configure Google Wallet — Common Settings and complete the setup.

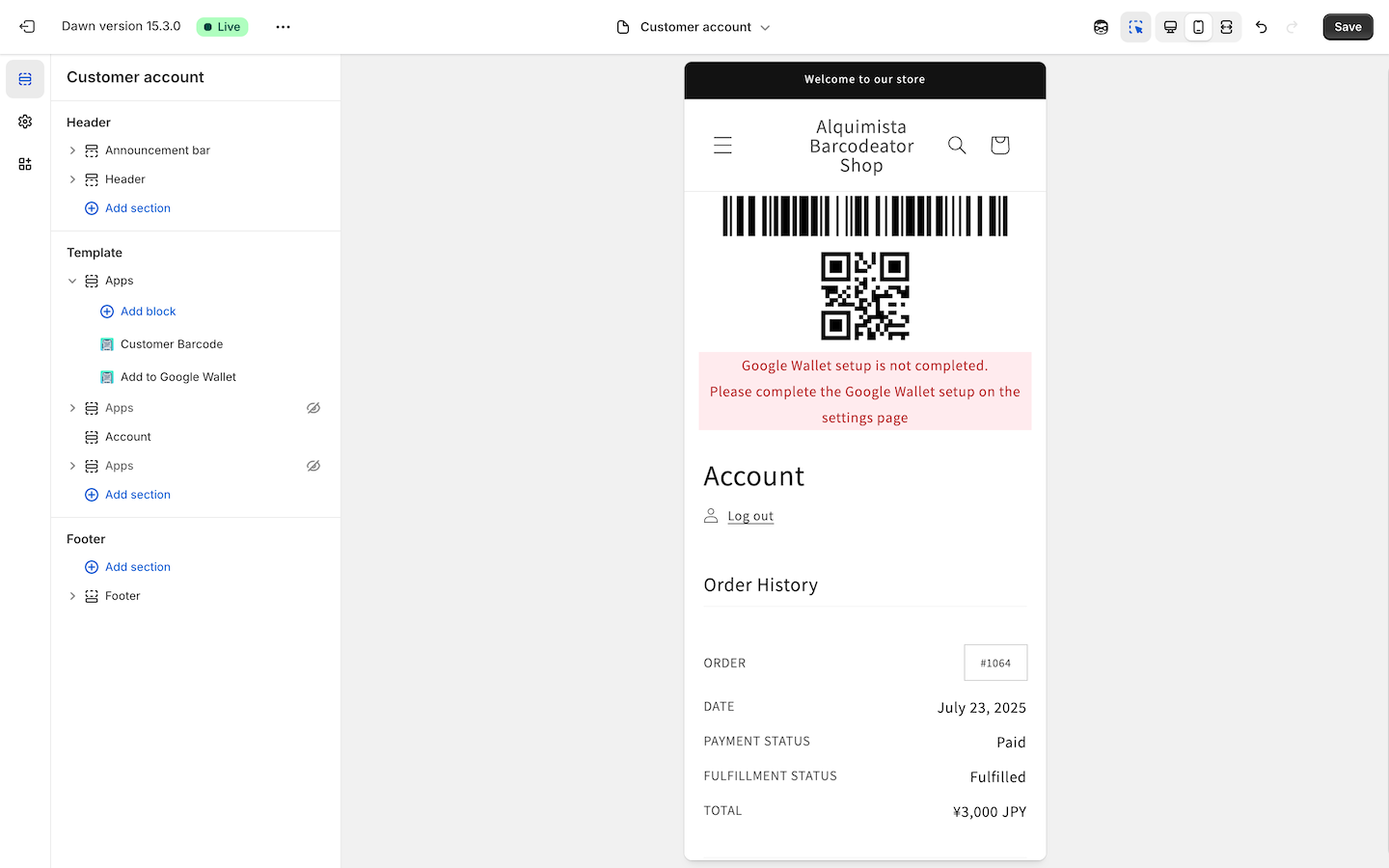

Google Wallet Setup Error

That’s it! You’ve successfully set up Google Wallet for Customer barcode/QR code.
Next, continue to Using Barcodeator with Shopify POS.
